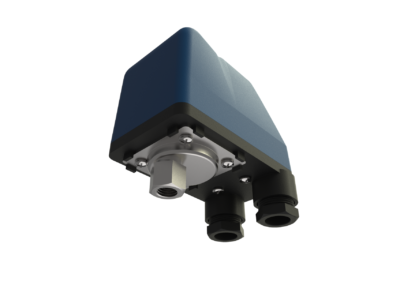

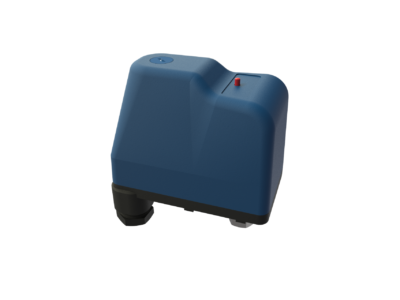

Low Pressure Switch LP/3

Login to view prices

SKU: PU-072 Category:

Description

Part No.PU-072
Function:Switches power off to the pump in the event of low pressure water supply to prevent pump running dry.

Installed in series on the power cable to the pump the device interrupts the electric connection between

the line and the load when the pressure decreases

below the established value (stop pressure) The reset is automatic when the pressure becomes again higher than the start value or when pressing the reset button

Cut-out pressure range0,05÷0,4 bar
Cut-in pressure range:0,4÷0,75 bar
Rated Current16A
Voltage250V
Connection¼” Female

Additional information

Weight0.35 kg
