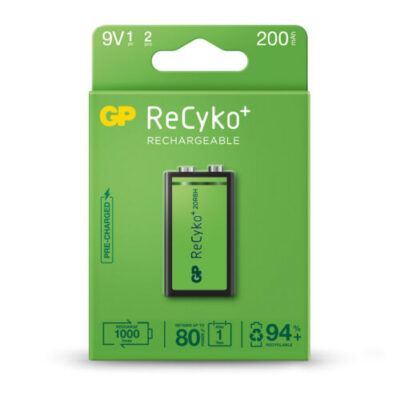

Rechargeable 9V PP3 Battery 200mAh

Login to view prices

Category:

Description

Type : Rechargeable Nickel Metal
Hydride Cylindrical Cell
Nominal Dimension (with Sleeve): 15.7mm(l) x 26.5mm(w) x 48.5mm(h)
Applications : Recommended discharge current 20 to 600mA
Nominal Voltage : 8.4V
Capacity : Nominal: 200mAh
Minimum: 200mAh
Typical: 210mAh
When discharged at 40mA to 7.0V at 20℃

Charging Condition : 20mA for 16 hrs at 20℃

Fast Charge : 100mA to 200mA (0.5 to 1C) charge termination control recommended control parameters:
-ΔV :          0-5mV
**DT/dt :  0.8℃/min (0.5 to 0.9C)
0.8 – 1℃/min (1C)
**TCO :     45 – 50℃
**Timer
** for ref. only
: 105% nominal input

Service Life : >500 cycles (IEC standard)
Up to 1000 cycle (not less than 60% of nominal at 0.1C charge / 0.2C discharge)
Continuous Overcharge : 20mA maximum current for 1 year.
No conspicuous deformation and/or leakage
